Motus Radiator Assembly

Description

High-Performance Radiator Assembly — Custom Fit for Motus & Beyond

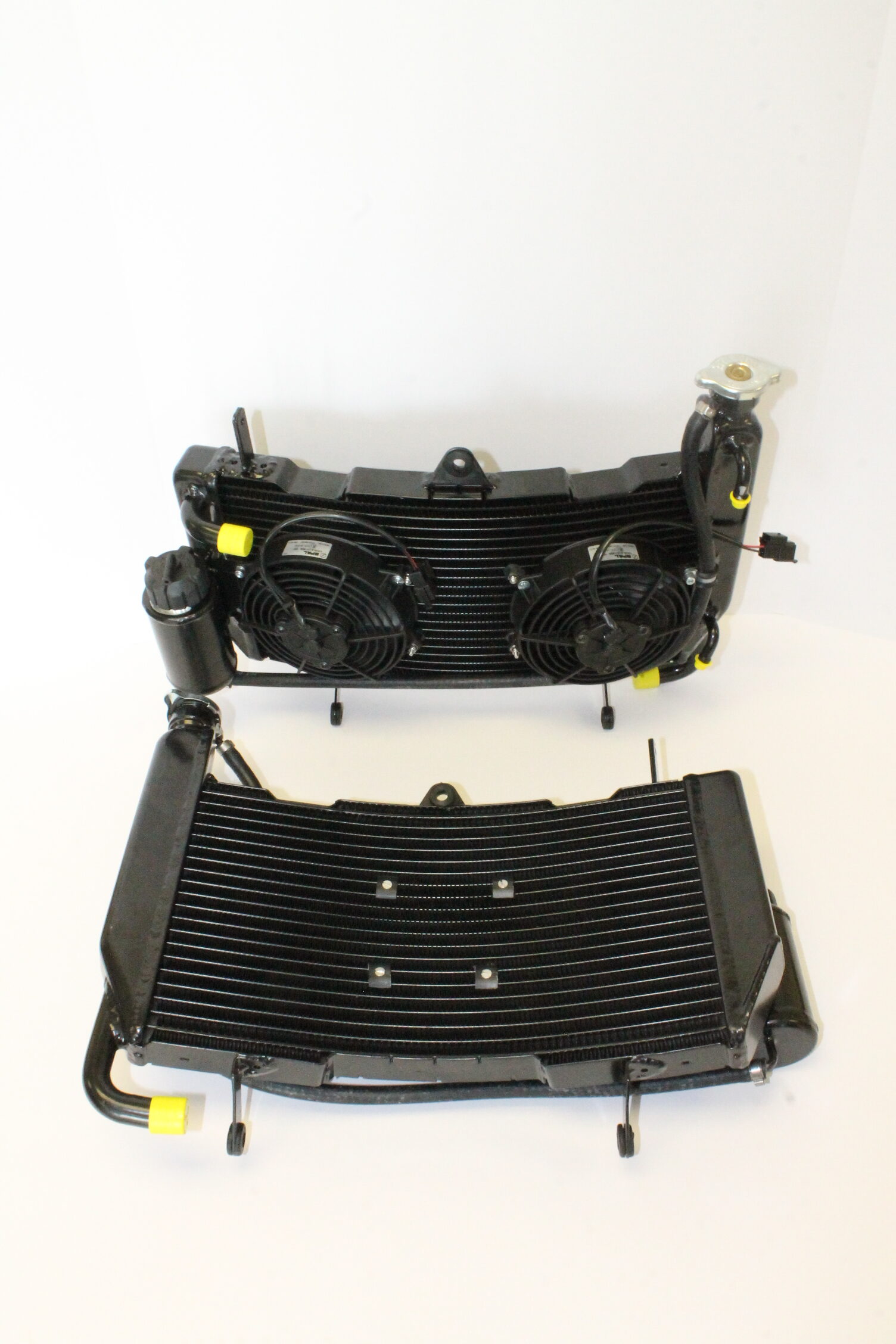

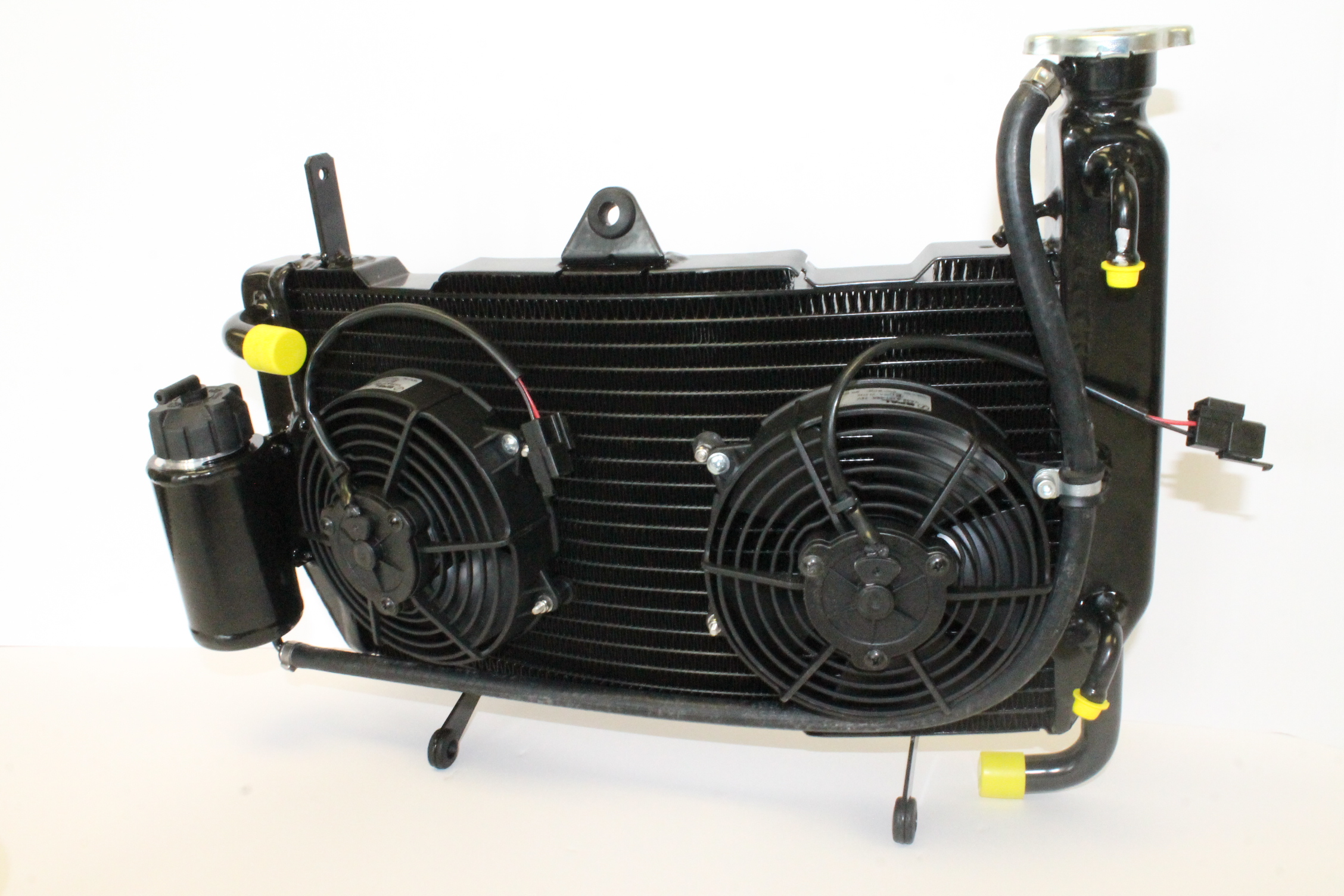

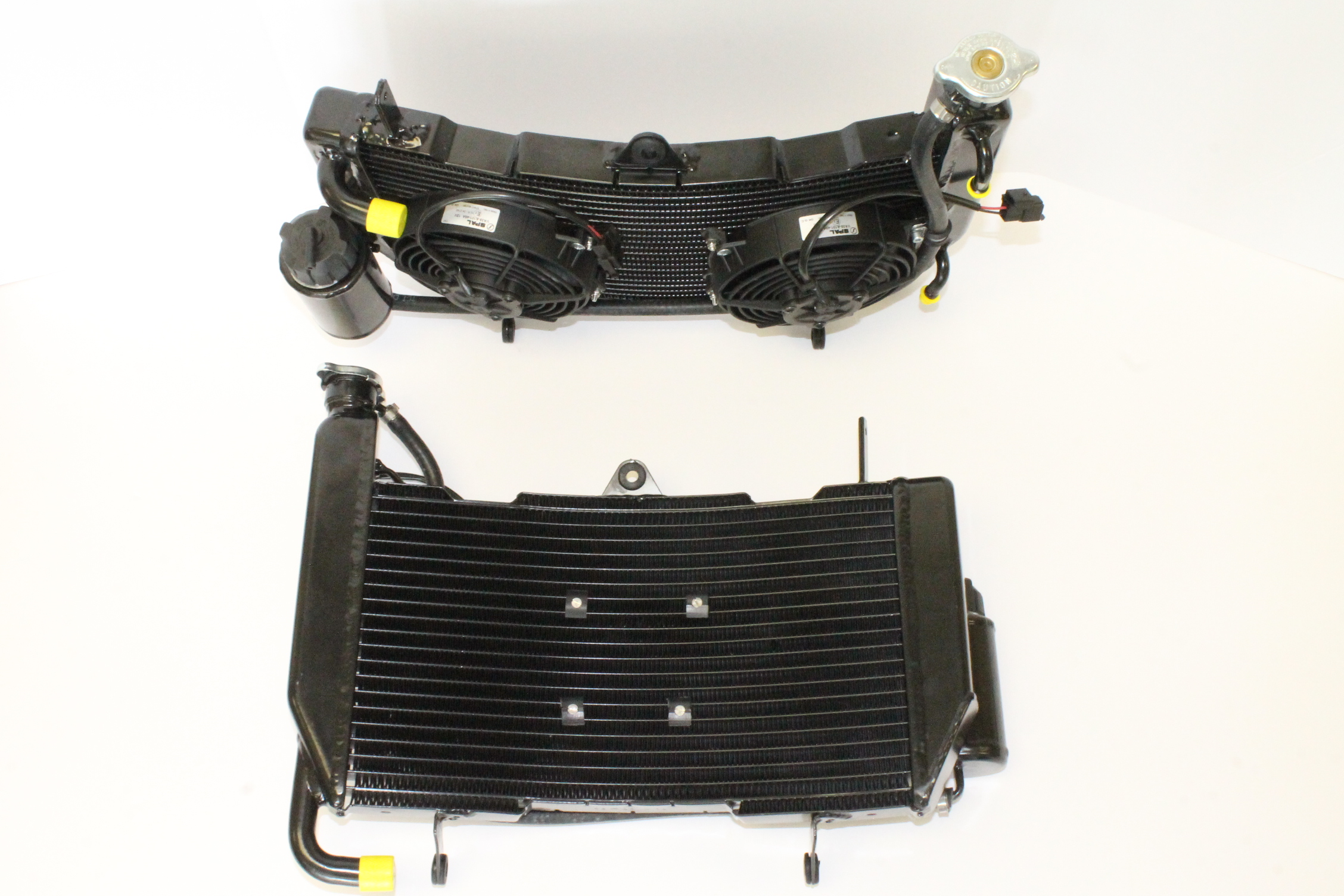

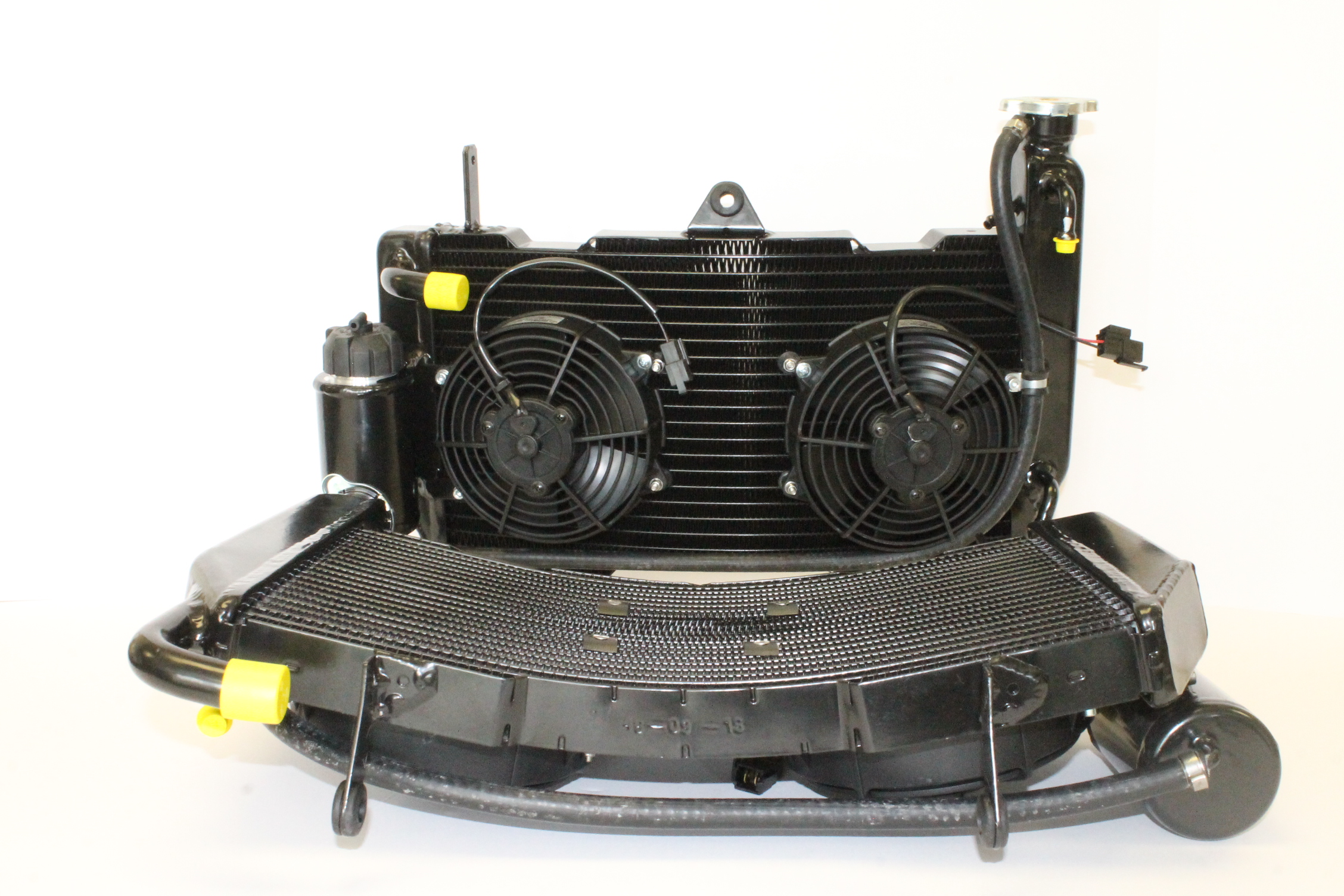

Motus 2014-2019 Radiator+Electric Fans+Expansion Tank P# GRV311470

Introducing a premium radiator assembly designed for Motus motorcycles — and engineered with the adaptability and mounting versatility to suit motorcycles, tractors, farm implements, wood chippers, and custom-built machines. Whether you’re restoring a sport-touring legend or upgrading cooling on a rugged workhorse, this unit delivers reliability and performance where it counts.

🛠️ Engineered for Power and Durability

• Designed originally for the liquid-cooled Motus MST/MSTR sport touring motorcycle, powered by a robust 1,645 – 1,650 cc longitudinal V4 engine with liquid cooling.

• Built to withstand sustained heat rejection at high RPM and heavy loads — a key priority in sport touring and industrial cooling alike.

• Ideal for high-torque engines or heavy-duty applications where effective heat dispersion is essential.

🌬️ Optimal Cooling Performance

• Efficient heat exchange ensures engines stay in their ideal temperature range — reducing wear and extending lifecycle.

• Designed for rapid airflow with minimal pressure loss, meaning cooler fluids and more consistent performance under load.

• Great for custom projects, agricultural engines, small tractors, and power equipment where overheating can impact productivity.

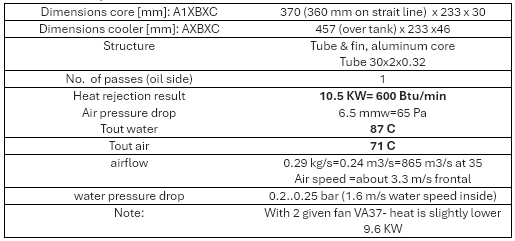

• Input Data:
  89.22 C water inlet into radiator (coolant temperature at engine outlet
  35 C max ambient
  20.1 GPM =1.262 l/s water flow

🧩 Universal Compatibility & Adaptability

• While originally mounted on a Motus motorcycle chassis, the compact core layout can be adapted to other vehicles or equipment with custom mounting brackets and hoses.

• Perfect for fabrication projects — especially where space is limited but cooling performance is non-negotiable.

• Can pair with aftermarket fan assemblies or integrate into bespoke cooling systems on tractors, wood chippers, or utility vehicles.

📏 Adaptable Mounting Points

• Mounting points can be modified or extended to accommodate non-OEM frames or equipment setups.

• Works well with custom brackets, clamps, and vibration-isolating mounts to suit diverse chassis dimensions.

🚀 Why Choose This Radiator Assembly?

• Reliable OEM-level cooling performance — originally designed for a demanding twin-cam V4 platform.

• Scalable for custom applications, from motorcycles to farm equipment.

• Future-proof upgrade or retrofit for older machines or high-output engines.
